Liquid with solids stainless steel tank high shear emulsifying suspended emulsifier mixer

2.0 Pieces
MOQ
Liquid with solids stainless steel tank high shear emulsifying suspended emulsifier mixer
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Mixer Type: Homogenizer
Barrel Volume (L): 500
Material Processed: Chemicals, Food, Medicine
Max. Loading Volume (L): 2000 L
Range of Spindle Speed(r.p.m): 1 - 3600 r.p.m
Max. Loading Capacity: 500L
Weight (KG): 500 KG
Material: SUS304, SUS316L
Condition: New
Product Type: Cosmetic
Application: Liquid with Suspended Solids
Additional Capabilities: Milling
Voltage: 220V/380V
Power (kW): 7.5 kW
Warranty: 1 Year
Key Selling Points: for washing detergent
Applicable Industries: Garment Shops, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Food Shop, Printing Shops, Food & Beverage Shops, Advertising Company, sanitizer making, lotion cream making
Showroom Location: None
Marketing Type: High speed mixer for cream
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 2 years
Core Components: emulsifying mixer, rotor, stator
Working Capacity: 200L~1T customized
Working pressure: <150psi
Heating: steam / hot water
Jacket type: spiral coil / dimple jacket / pillow sheet
Agitator type: high shear emulsifier
Mixing Speed: 2900rpm
Invertor: optional
optional mixer: scraper mixer / cowles disc / disperser
After Warranty Service: Video technical support, Online support, Field maintenance and repair service
Local Service Location: None
Zertifizierung: CE
Grundinformation
Zertifizierung: CE
Zahlung und Versand AGB
Packaging Details: wooden case
Supply Ability: 50 Piece/Pieces per Month
Produkt-Beschreibung
Product Description

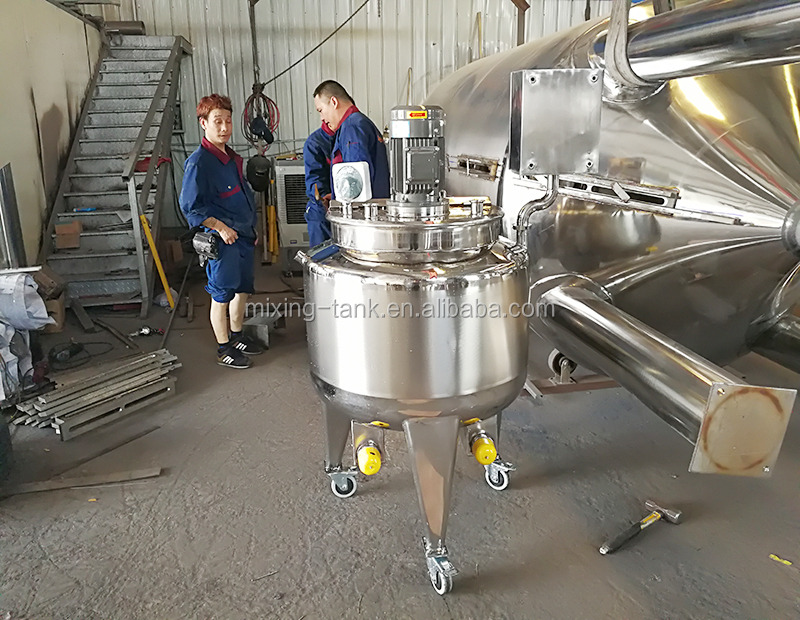

The stainless steel emulsifying mixing tank high shear mixing tank is a multi-purpose blending emulsifier system. It is designed for blending and emulsifying of cream and high viscosity product such as vegetable puree, honey and chocolate as well as water and powder, and this high shear emulsifyer can be used to the production of mayonnaise. It can also be designed for your products and smaller or larger batches.

Specification

Buyer’s request

- High speed shearing tank – 1000 Ltr – 1 Set

- Raw material: SUS304 stainless steel

- Main structure: With insulation, inner body thickness 3mm,

- Outer thickness 2mm, high speed emulsification

- ABB motor on top, 2900 RPM, ,

- With CIP cleaning ball, φ51 water inlet, digital thermometer,

- Draw bar valve, anti-votex board,

- Electrode high and low liquid level probe, with inner scale,

- Adjustable leg

Specification

Capacity

1000Liter

Material

SS304

Structure

Double wall, insulated

Wall thickness

3 / 2 mm

Motor power

11kw

Motor brand

ABB

Mixing speed

2900rpm

Power supply

380V 3phase AC

Insulation thickness

50mm

Insulation material

PU

Accessories

Drainage valve, CIP cleaning ball, breath valve, temperature gauge

Features

(customised) FEATURES:
1. Scrape surfaces and contra rotating mixer (no sticking product) brings product to the centre
2. Contra rotation for a thorough mix.
3. Conical profile provides good drainage of product
4. 4 inch bottom out-fit (air driven rotary ball valve). Excellent drainage capabilities.
5. 3 inch lobe pump (Big lobe gull wing-able to pump chunky product/easy to clean).
6. 3-stage in-line emulsifier (Large 15kW motor).
7. Variable speed stirrers and pump.
8. 3 way diversion valve to pump product to holding hopper.
9. Full stainless steel construction
10. Skid mounted
11. Simple touch screen control panel

Options

OPTIONS:
Dimple jacket / sprial coil jacket for heating or cooling
Thermal insulation wall
Powder inlet hopper

Load cells / weighing module
Touch Screen on control panel

PLC control system
Removable safety grid
Removable lids hinged to tank top

Heavey duty stainless steel castors / movable wheels

Our price

Please contact our online service team to get the latest price of the emulsifying mixing tank you are looking for.

we offer a reasonable price, not too high, not too low. all the prices are based on the tank configuration that you choose.

for example, an high shear emulsifying tank with VFD controller and with vacuum system will have a high price than the blending tank with 36rpm fixed mixing speed and normal pressure.

all of our emulsifying mixing tank are made of stainless steel. SS304, or SS316L. Due to the price of stainless steel raw material and the tank accessories keep changing, the price you see in this site may not correct. please contact our on line service team to get the latest price.
