Eigenschaften

Technische Daten

Type: Vacuum Drying Equipment

Drying Capacity (kg): 20-200kg/h

Application: Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing

Condition: New

Voltage: 3Phase/220v/380v/50Hz

Dimension(L*W*H): as required

Key Selling Points: Automatic

Warranty: 1 Year

Weight (KG): 18000

Applicable Industries: Food & Beverage Factory, Other, pharmaceutical factory

Showroom Location: None

Marketing Type: New Product 2022

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Warranty of core components: 1 Year

Core Components: Bearing, Pump, Gear, Motor, Other, PLC, Engine, Pressure vessel

Evaporation Capacity(kg/h): 50

Heating Method: Steam Heating

Material: SUS304, SUS316L, SS304 steel

After-sales Service Provided: Video technical support

drying temp: 20-150â„ƒ

Function: turn liquid into powder

vacuum: -0.099Mpa

Application material: For food/chemical/pharmaceutical industry

Made in: China

Dryer features: continuous

Zertifizierung: ISO9001, CE

Grundinformation

Zertifizierung: ISO9001, CE

Zahlung und Versand AGB

Packaging Details: Thin film winding

Supply Ability: 500 Set/Sets per Year

Produkt-Beschreibung

Vacuum belt dryer is a continuous infeed and discharge vacuum drying equipment. Liquid product is conveyed into dryer body by infeed pump, evenly spread on belts by distribution device. Under high vacuum, the boiling point of the liquid is lowered; water in the liquid material is evaporated. Belts move on the heating plates evenly. Steam, hot water, hot oil can be used as heating media. With the moving of the belts, the product goes through from the beginning evaporating, drying, cooling to discharging in the end. The temperature decreases through this process, and can be adjusted for different products. Special vacuum crusher is equipped at the discharge end to produce different size end product. The dry powder or granule product can be automatically packed or continue with subsequent process.

EQUIPMENT ADVANTAGE:
1.Less labor cost and energy consumption
2.Little loss of product and solvent recycling possible
3.PLC automatic control system & CIP cleaning system
4.Good solubility & excellent quality of the products
5.Continuous feed-in, dry, granulate, discharge in vacuum state
6.Completely closed system and no contamination
7.Adjustable drying temperature (30-150℃)& drying time (30-60min)
8.GMP standards

Model	Diameter	Length	Height	Heating area	Moisture contentoffeeding material	Moisture content of dried product	Heating resource	Water Evaporation	Dryer body power
	mm	mm	mm	Square meter	%	%		kg/h	kw
MJY30-4	1700	9800	2700	30	20-80 Mobility	0.2-5 Adjustable	Steam or Hot water or Hot oil	15-25	10.00
MJY60-6	2200	10800	3650	60				45-55	14.00
MJY80-6	2200	13500	3650	80				60-75	14.50
MJY100-6	2200	16100	3650	100				80-90	15.50
MJY120-7	2200	16100	3650	120				100-110	16.50
MJY160-8	2800	17300	4100	160				120-140	18.50
MJY200-10	2800	17300	4150	200				160-180	25.50

If the solvent of raw material is organic (ethanol, acetone, methanol etc.),evaporation capacity would rise. Evaporation capacity is closely related with drying temperature.

Vacuum belt dryer (VBD) is mainly used in drying many kinds of liquid or paste raw material, such as Traditional & western medicines, food, biological products, chemical material, health foods, food additive etc, especially suitable for drying material with high-viscosity, easy agglomeration, or thermoplastic, thermal sensitivity, or material that can not be dried by traditional dryer.

FAQ

Question 1: What is the working principle of vacuum belt dryer?

Answer:Vacuum belt dryer is a continuous infeed and discharge vacuum drying equipment. Liquid product is conveyed into dryer body by infeed pump, evenly spread on belts by distribution device. Under high vacuum, the boiling point of the liquid is lowered; water in the liquid material is evaporated under low temperature, thus protect active ingredients in the product.

Question 2: What is the cleaning way? Whether does the machine accord with GMP standards?

Answer:with CIP cleaning, vacuum belt dryer is the best choice for GMP performance.

Question 3: What kind of products can vacuum belt dryer dry?

Answer:all kinds of liquid material for vacuum belt dryer.

Question 4:How to ship vacuum belt dryer?

Answer: Flat Rack+container

Question 5:What is the delivery time?

Answer: 120 days

Question 6:What is the after-sales service type?

Answer: engineers onsite to guide installation, commissioning and training.

Question 7:How many years history of your factory?

Answer: Since 1998.

Question 8:How many sets vacuum belt dryer are been sold every year?

Answer: Over 80 sets

Question 9: What is drying temperature?

Answer: 30-150℃(adjustable)

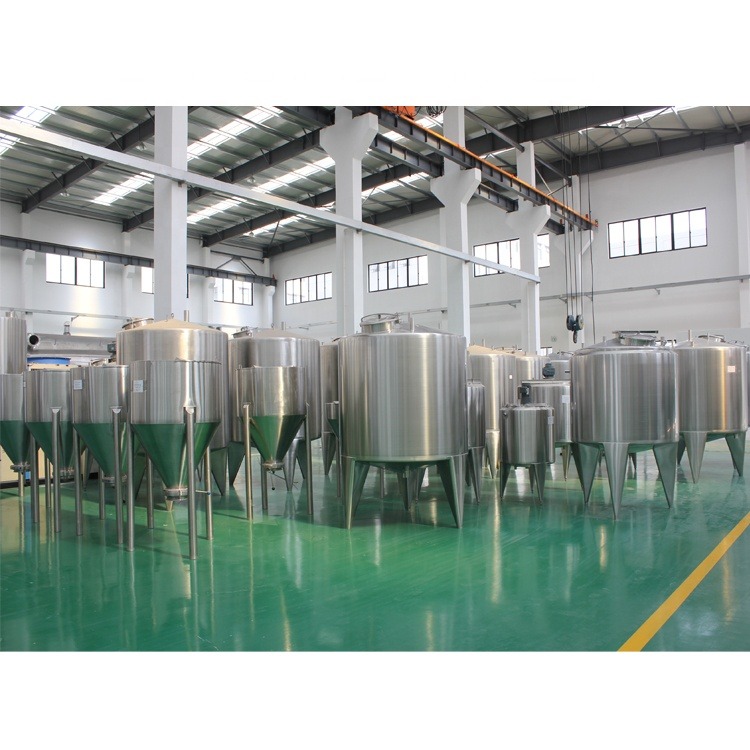

Lined Kneader Stainless Steel Tank Heating Mixer Continuous Mixing Tank With Agitator
