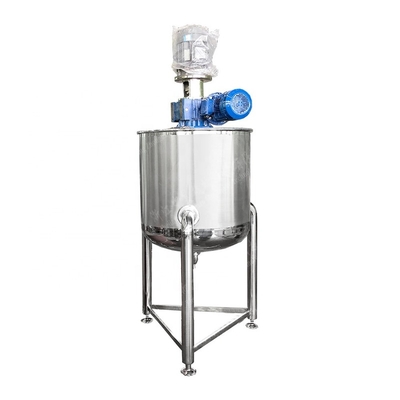

Homogenizer Large Viscosity High Shear Emulsifier High Shear Scraper 304 316L Stainless Steel Product Mixing Tank for Processed Cheese and Milk Mixer

Products Name

Stainless steel 304 316L scraper high shear Homogenizer Emulsifier mixing tank for cream cheese and milk mixer

Material

SS304/SS316L

Jacket: full jacket ,dimple jacket , coil tube

Insulation layer: PU / rockwool

as to the thickness, we can make it according to your requirement.

Description:

Designed according to 3A standard, widely used for transfer viscous media in the food-processing, cosemtics and pharmaceutical industries

Heating mothed:

By electricity (oils or water), by steam , circulation heating (hot water or oil)

Configuration:

1.manhole

2.CIP spraying ball

3.adjusting feet

4.sight glass

5.temperature gauge

6.pressure gauge / vacuum gauge

7.breather

Capacity:

50L-10000L

Mixer Type:

High shear Homogenizer or Agitator ( anchor , frame , stirrer with side scraper , blade ,impeller )

Mechanical seal:

SIC/SiC/EPDM(Standard)

Agitator power:

0.55kw -75KW

Sealing option:

Sanitary single mechanical seal/Double mechanical seal with cooling system

Voltage:

220V -480V

Motor:

ABB, SIEMENS , SEW , Domestic

Surface treatment:

Inner polished and outside polished

Availably connection:

Clamp, Thread Butt weld, Flange

Availably standard:

DIN, SMS, 3A, RJT, ISO/IDF

Operated:

Electic

Application scope:

Dairy, food, beverage, pharmacy, cosmetic, etc

Packaging Details:

Export Plywood case

Delivery details:

Usually within 25-30 days after receiving T/T down payment
