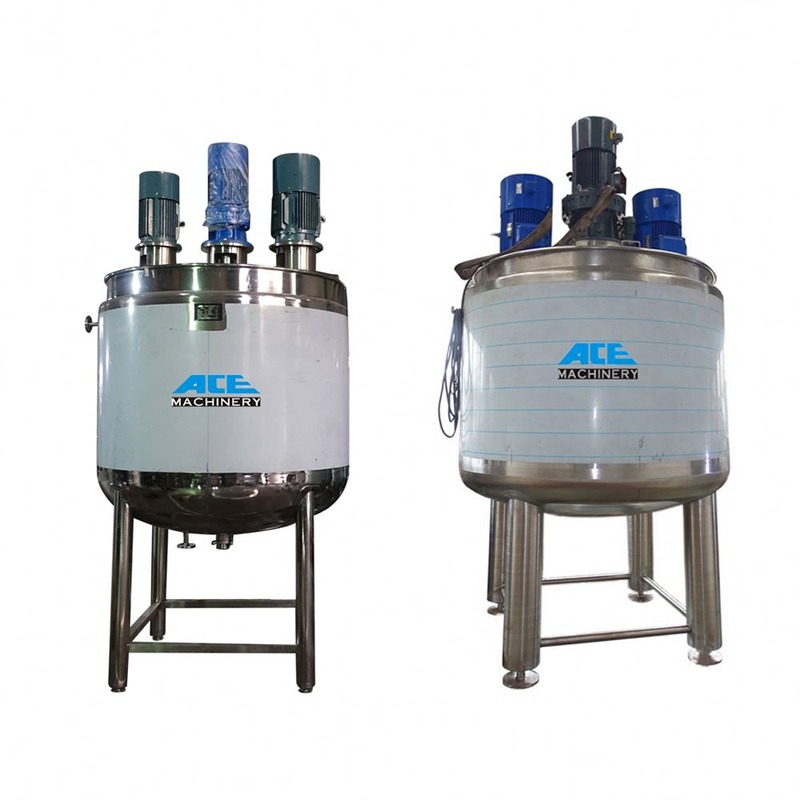

Ce Liquid Certified Stainless Steel 3000L 4000L 5000L 200 Gallon Mixing Tank

1 Set
MOQ
$2,000.00(1 - 1 Sets) $1,900.00(>=2 Sets)
Preis
Ce Liquid Certified Stainless Steel 3000L 4000L 5000L 200 Gallon Mixing Tank
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Mixer Type: Agitator
Barrel Volume (L): 9000
Material Processed: Chemicals, Food, Medicine, milk, shampoo, paint, juice, sauce,honey
Max. Loading Volume (L): 5000 L
Range of Spindle Speed(r.p.m): 1 - 3000 r.p.m
Max. Loading Capacity: 10000
Weight (KG): 500 KG
Material: SUS304, SUS304L, SUS316, SUS316L, Ti
Condition: New
Product Type: Liquid/Food/Medicine/Chemicals/powder/
Application: Liquid
Additional Capabilities: Heating, homogenization, emulsification
Voltage: Customized
Dimension(L*W*H): Customized
Power (kW): 6.5 kW
Warranty: 1 Year
Key Selling Points: Multifunctional
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Bevera
Showroom Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri
Marketing Type: Customized
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 5 years
Core Components: Motor, Pressure vessel, Pump, PLC
Tank Volume: 50L-30,000L
Layer: single/double jacket/three jacket
Mixing type: Scraper Mixer Homogenizer Disperser
Heating Method: Steam or Electric Heating
Keywords: 200 gallon mixing tank
Tags: stainless steel/high shear/high speed
Processing type: Chemicals/Food /Medicine/Powder/
Additional Functions: Automatic/Multifunction/Vaccum
Motor: Domestic/ABB/Siemens
Control: Electronic Control / PLC
Grundinformation
Zahlung und Versand AGB
Produkt-Beschreibung

Ce Certified Stainless Steel 3000L 4000L 5000L 200 Gallon Mixing Tank

Custom Made 50L- 30,000L Mixing tank, 20 Years Of Experience. Reasonable Price And Best Service, CE Certificated Products.15-30 day fast delivery,.Contact us for the offer.
Video
Products Description
Description:
stainless steel mixing tank could be used in food, beverage, pharmacy, chemical industry,wine and alcohol etc industries. The inside surface finish of stainless steel mixing tank is Mirror polished, Ra<0.4um.
The welding are polished to ground smooth. There are various agitator options of stainless steel mixing tank: impeller type, Anchor type, Turbine type, High shear mixer,magnetic mixer. The mixing tank could be made with or without jacket. stainless steel food grade mixing tank could be made with or without jacket. Jacket type including full jacket, Dimple jacket,Heating coils. Heating and cooling type including steam heating and electric heating.
Mixing tank (Accept customized)
Profile/type
Single layer tank
Double layer tank
Three layer tank
Material
SS304 or SS316L
Volume
50L-30T (Customized)
Tank Type
Vertical type/Horizontal type/Mobile type
Structure
one layer
Inner layer+jacket
inner layer+jacket+insulation
heating way
Electric/Steam Heating
electric/steam heating
electric/steam heating
Inside Finsh
Mirror polished Ra<0.4um
Outside Finish
2B or Satin Finish
Stirrer type
impeller, Anchor , Turbine , High shear, magnetic mixer, Anchor mixer with scraper
low speed
High speed
No
0-200RPM
960-3400RPM
Power
0.55~55KW
Voltage
110V~480V
Top Head type
Dish top, Open lid top, Flat top
Bottom type
Dish bottom, Conical bottom, Flat bottom
PARTS DETAILS
1.Quick open manhole / Pressure manhole
2.Various types of CIP cleaners
3.Sterile respirator
4.Adjustable Legs
5.Inlet and Outlet sanitary valve
6.Thermometer (According to customer requirements )
7.Paddle blender .(According to customer requirements)
8.Liquid level meter and lever controller (According to customer requirements)
9.Ladder
Application
Food, Beverage, pharmacy, biological,honey, chocolate, alcohol ,chemical industry etc
We can customize the mixing equipment according to customer requirements.

Have different kinds of agitators: ( Other Stirrer can be customized )

1, Bottom magnetic agitator with propeller impeller, speed from 50-400rpm or 50-800rpm. this kind of agitator is mixing thin viscosity , such as eyedrop, injection, CIP liquid, water, etc. 2, Top mechancial agitator with propeller impeller, speed at fix 71rpm or adjustable 20-200rpm or special requirement. this kind of agitator is mixing syrup, injection, blood, oral liquid, culture media, etc. 3, Top mechanical agitator with anchor or frame impeller, speed is from 10-70rpm. it is mixing higher viscosity , such as sediment or viscosity oral liquid, etc. 4, Top emusification homogenizer, speed max 2900rpm for small vessel, 1480rpm for bigger tank. this kind of agitator is mixing most high viscosity , such as suspension, oil, fat emulsification , etc. 5, Bottom emusification homogenizer, speed max 2900rpm for small vessel, 1480rpm for bigger tank. this kind of agitator is mixing most high viscosity , such as suspension, oil, fat emulsification , etc.

Details Images

8T Side mixing tank

6T mixing tank

10T Mixing tank

20T Mixing tank

Packaging & Shipping

We are experienced in the whole packing and shipping process,and we will be responsible for any damage made during shipping and send clients replacements for free. * Sufficient inner protection with different materials, including bubble bag, foam board and others. * Qualified wooden package or carton for different products or as customer require * Strict packing process to ensure the safety and completeness of the goods
Certifications
FAQ
Q1. What is your terms of packing? A: Generally, we pack our goods in plywood case or carton package for small parts. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters. Q2. What is your terms of payment? A: T/T in advance, 30% as deposit, and finish 70% balance payment before delivery. We'll show you the photos of the products and packages before you pay the balance. Q3. What is your terms of delivery? A: EXW, FOB, CIF, DDU. Q4. How about your delivery time? A: Generally, it will take 3 to 4 weeks after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Q5. Can you produce according to the samples? A: Yes, we can produce by your samples or technical drawings. Q6.Do you test all your goods before delivery? A: Yes, we have 100% test before delivery Q7: How do you make our business long-term and good relationship? A:1. We keep good quality and competitive price to ensure our customers benefit ; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
