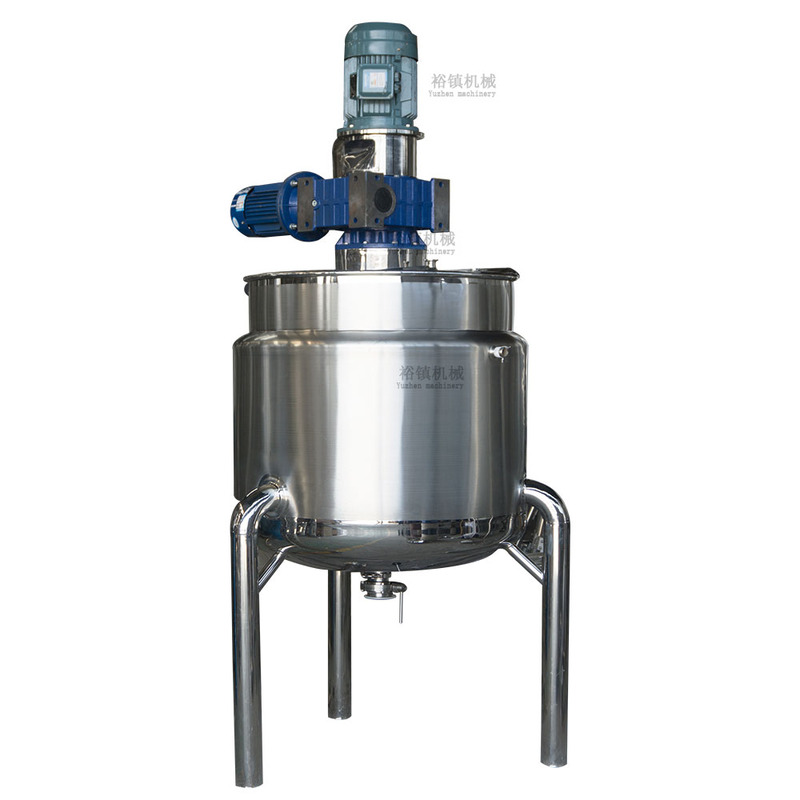

Customizable Hotels Stainless Steel Emulsifying Equipment For Pharmaceutical / Mixing Emulsifying Tanks

1 Piece
MOQ
$6,000.00(>=1 Pieces)
Preis
Customizable Hotels Stainless Steel Emulsifying Equipment For Pharmaceutical / Mixing Emulsifying Tanks
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Mixer Type: Screw
Barrel Volume (L): 1000
Material Processed: Plastics, Chemicals, Food, Medicine
Max. Loading Volume (L): 1000 L
Range of Spindle Speed(r.p.m): 1500 - 2000 r.p.m
Max. Loading Capacity: 1000
Weight (KG): 500 KG
Material: SUS304, SUS304L, SUS316, SUS316L, SUS316
Condition: New
Voltage: 380V
Dimension(L*W*H): Customised
Power (kW): 4 kW
Warranty: 1 Year
Key Selling Points: Automatic
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Bevera
Showroom Location: None
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor, Gear, Pressure vessel, PLC, Other
After-sales Service Provided: Online Support
Product name: Mixing Tank
Name: Blender Machine
Grundinformation
Zahlung und Versand AGB
Packaging Details: woodenbox
Supply Ability: 100 Piece/Pieces per Month
Produkt-Beschreibung

Customizable stainless steel emulsifying equipment for pharmaceutical/blending emulsifying tanks

Product Description

The function of emulsifying tank is to dissolve one or more materials (water-soluble solid phase, liquid phase or colloid, etc.) in another liquid phase and hydrate them into a relatively stable emulsion. It is widely used for emulsification and mixing of raw and auxiliary materials such as edible oil, powder and sugar. Emulsification tank is also used for emulsification and dispersion of some coatings and paints, especially for some insoluble colloidal additives such as CMC and xanthan gum.

Product Parameters

Products Name

 liquid mixing tank with agitator chemical blending tank agitator tank jacketed mixing vessel

Material

SS304/SS316L

Jacket: full jacket ,dimple jacket , coil tube

Insulation layer: PU / rockwool

as to the thickness, we can make it according to your requirement.

Description:

Designed according to 3A standard, widely used for transfer viscous media in the food-processing, cosemtics and pharmaceutical industries

Heating mothed:

By electricity (oils or water), by steam , circulation heating (hot water or oil)

Configuration:

1.manhole

2.CIP spraying ball

3.adjusting feet

4.sight glass

5.temperature gauge

6.pressure gauge / vacuum gauge

7.breather

Capacity:

50L-10000L

Mixer Type:

High shear Homogenizer or Agitator ( anchor , frame , stirrer with side scraper , blade ,impeller )

Mechanical seal:

SIC/SiC/EPDM(Standard)

Agitator power:

0.55kw -75KW

Sealing option:

Sanitary single mechanical seal/Double mechanical seal with cooling system

Voltage:

220V -480V

Motor:

ABB, SIEMENS , SEW , Domestic

Surface treatment:

Inner polished and outside polished
Availably connection:

Clamp, Thread Butt weld, Flange
