Startseite /Produkte/Erhitzter Mischbehälter/Homogenizer Liquid Liquid Emulsifier Mixer Electric Shampoo 50L-1000L Heating Mixing Tank

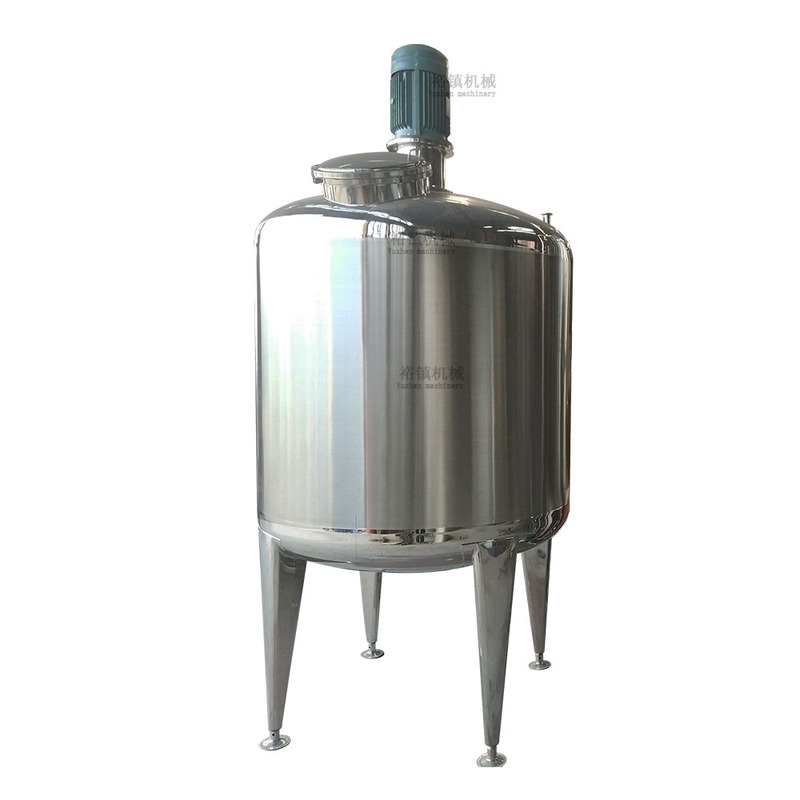

Homogenizer Liquid Liquid Emulsifier Mixer Electric Shampoo 50L-1000L Heating Mixing Tank

1 Piece
MOQ
$2,500.00(>=1 Pieces)
Preis
Homogenizer Liquid Liquid Emulsifier Mixer Electric Shampoo 50L-1000L Heating Mixing Tank
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Mixer Type: Homogenizer
Barrel Volume (L): 600
Material Processed: Plastics, Chemicals, Food
Max. Loading Volume (L): 500 L
Range of Spindle Speed(r.p.m): 2800 - 3600 r.p.m
Max. Loading Capacity: 500L
Weight (KG): 450 KG
Material: SUS304, SUS316L
Condition: New
Product Type: Cosmetic
Application: Liquid
Additional Capabilities: Milling
Voltage: 380V
Dimension(L*W*H): Customised
Power (kW): 4 kW
Warranty: 1 Year
Key Selling Points: Multifunctional
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Bevera
Showroom Location: None
Marketing Type: Ordinary Product
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor, Gear, Pressure vessel, Gearbox, Pump, PLC, Other, Bearing, Engine
Grundinformation
Zahlung und Versand AGB
Packaging Details: Wooden packing
Supply Ability: 15 Piece/Pieces per Month
Produkt-Beschreibung

50L-1000L Shampoo Liquid Mixer Homogenizer Emulsifier Electric Heating Mixing Tank

Product Description

Emulsifying tank is widely used in food, beverage, biopharmaceutical and fine chemical industries to mix and emulsify materials and improve production efficiency and material quality. Emulsification tank is the use of high-speed, strong rotation of the rotor generated by the centrifugal force, so that the material from the radial thrown into the narrow and precise gap between the stator and rotor, while being centrifugal extrusion, impact and other effects of high-speed dispersion of materials, emulsification, so that a variety of materials mixed uniformly to get a uniform liquid, while the emulsification tank also has heating, insulation, cooling, stirring functions. The tank is designed with material inlet, discharge port, pure water port and other process ports, which can provide the full conditions of emulsification process.

Product Parameters

Products Name

50L-1000L Shampoo Liquid Mixer Homogenizer Emulsifier Electric Heating Mixing Tank

Material

SS304/SS316L

Jacket: full jacket ,dimple jacket , coil tube

Insulation layer: PU / rockwool

as to the thickness, we can make it according to your requirement.

Description:

Designed according to 3A standard, widely used for transfer viscous media in the food-processing, cosemtics and pharmaceutical industries

Heating mothed:

By electricity (oils or water), by steam , circulation heating (hot water or oil)

Configuration:

1.manhole

2.CIP spraying ball

3.adjusting feet

4.sight glass

5.temperature gauge

6.pressure gauge / vacuum gauge

7.breather

Capacity:

50L-10000L

Mixer Type:

High shear Homogenizer or Agitator ( anchor , frame , stirrer with side scraper , blade ,impeller )

Mechanical seal:

SIC/SiC/EPDM(Standard)

Agitator power:

0.55kw -75KW

Sealing option:

Sanitary single mechanical seal/Double mechanical seal with cooling system

Voltage:

220V -480V

Motor:

ABB, SIEMENS , SEW , Domestic

Surface treatment:

Inner polished and outside polished

Availably connection:

Clamp, Thread Butt weld, Flange

Availably standard:

DIN, SMS, 3A, RJT, ISO/IDF

Operated:

Electic

Application scope:

Dairy, food, beverage, pharmacy, cosmetic, etc

Packaging Details:

Export Plywood case

Delivery details:

Usually within 25-30 days after receiving T/T down payment

Accessory Selection

Product Details

Company Information
