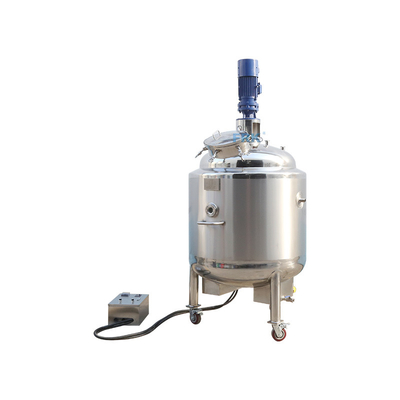

Stainless Steel Viscous Liquid Movable Vessel Electric Heating Three-Layer Mixing Tank

1.0 Sets
MOQ
Stainless Steel Viscous Liquid Movable Vessel Electric Heating Three-Layer Mixing Tank
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Mixer Type: Agitator
Barrel Volume (L): 5000
Material Processed: Chemicals, Food, Medicine
Max. Loading Volume (L): 5000 L
Range of Spindle Speed(r.p.m): 1 - 2900 r.p.m
Max. Loading Capacity: 5000L
Weight (KG): 500 KG
Material: SUS304, SUS304L, SUS316, SUS316L, stainless steel
Condition: New
Product Type: Paint
Application: Viscous Fluid
Additional Capabilities: heating
Voltage: 200V, 220V, 230V, 380V, 400V
Dimension(L*W*H): Customized
Power (kW): 11 kW
Warranty: 1 Year
Key Selling Points: Multifunctional
Applicable Industries: Food & Beverage Factory, Pharmaceutical
Showroom Location: None
Marketing Type: Ordinary Product
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor, Gear, Pressure vessel
power: 1.5kw 2.2kw 3kw 4kw 7.5kw 11kw 15kw 22kw 37kw
After-sales Service Provided: Online support, Video technical support
After Warranty Service: Video technical support, Online support
Local Service Location: None
Zertifizierung: Certified by SGS / TUV / CE / ISO9001
Grundinformation
Zertifizierung: Certified by SGS / TUV / CE / ISO9001
Zahlung und Versand AGB
Packaging Details: We are experienced in the whole packing and shipping process,and we will be responsible for any damage made during shipping and send clients replacements for free. * Sufficient inner protection with different materials, including bubble bag, foam board and
Supply Ability: 50 Set/Sets per Month
Produkt-Beschreibung
Recommend Products

How to choose a suitable machine?

Check model no: The model no. of a machine shows its structure type, which determines capacity. Check capacity: The capacity of a machine varies greatly according to materials of different density and viscosity.
Products Description
The design and manufacture of the electric heating mixing tank strictly comply with the requirements of GMP. It is economical, safe, high-efficient, hygienic, thoroughly cleaned, easy to disassemble and wash, and has been affirmed by users.
Equipment Structure: upper oval double-opening cover with manhole, lower oval bottom head, bottom discharge, vertical feet. Main functions of the electric-heating mixing tank: heating (heating the medium in the jacket by the heaters, transferring heat energy, and indirectly heating the material in the tank, with automatic temperature control), heat insulation, cooling and stirring. Features: ● Stainless steel 304/316L is used for the tank liner and parts in contact with the material. The rest of the tank body is also made of stainless steel 304. ● Both the internal and external is mirror polished (roughness Ra≤0.4um), neat and beautiful. ● Mixing at fixed speed or variable speed, meeting the requirements of different loading and different process parameters for agitation (it is frequency control, online real-time display of stirring speed, output frequency, output current, etc.). ● Agitator operation state: the material in the tank is mixed quickly and evenly, the load of the stirring transmission system is running smoothly, and the load operation noise ≤40dB(A) (lower than the national standard of <75dB(A), which greatly reduces the laboratory's sound pollution. ● The agitator shaft seal is sanitary, wear-resistant and pressure-resistant mechanical seal, which is safe and reliable. ● It is equipped with special equipment to prevent the reducer from contaminating the material inside the tank if there is any oil leakage, very safe and reliable. ● One-third of the upper flat cover is openable and movable, making it easy to feed and clean thoroughly. It is discharged from the bottom of the tank, clean and free of liquid. ● A movable baffle is installed in the tank to meet the mixing and stirring requirements, and there is no cleaning dead angle. It is more convenient to remove and wash it. ● With automatic temperature control, high temperature sensitivity and high precision (with a digital display temperature controller and Pt100 sensor, easy to set up, economical and durable). ● The clamp is applicable for ports, smooth and easy to clean, and also easy to assemble and disassemble. ● Easy to install and use: just plug in the required power cable (380V/three-phase four-wire) in the terminal of the electric control box, then add materials and heating medium to the inside of the tank and the jacket respectively.
For your Detailed description and drawings, please send us inquiry and request!
The advantages of this electric heating tube connection: 1. It is easy to install the electric heating tube without special loading and unloading tools. 2. The electric heating tube is completely filled into the tank body, and it is heating efficiency. 3. Greatly reduce the cost of use and save energy.
Details Images
For more customized products, please send us inquiry and reques
Why Choose Us
Certification
25 National Patents, Audited by SGS/TUV/CE/ISO9001
Quality Guarantee
Complaint rate as low as 5‰ for 15 years. If you decide to purchase from us, any malfunction happened, once you enquiry us, we will reply you solution within 48 hours except the special reasons
Short Lead Time
Lead time is flexible. Short turnaround of replacement parts made by substantial storage, Normally we are 20% faster than others. If you have urgent orders, pls feel free to contact us. We will get the job done with 100% satisfaction.
24/7 Available
All your inquiry will be responded within 1 hour. All your quotation will be satisfied within 12 hours.
Why choose us？
•100% manufacturer
• Rich production experience
•Strict Quality Control System
•Flexible MOQ
•Punctual delivery
•Excellent and Experienced Team
Company Profile

Wenzhou Qiangzhong Machinery Technology Co., Ltd. is a professional manufacturer of processing machines, located in Wenzhou City, China, near Longwan International Airport. Our main products include the high shear mixer, mixing tank, colloid mill, sanitary pump, sanitary filter, sanitary pipe, and valve. They are widely used in industries such as brewery, dairy product, beverage, chemicals, cosmetics, pharmaceuticals, and biopharmaceuticals.

We offer complete sets of service from research and development, production, sales, after -sales to maintenance, in accord withGMP, QS, and HACCP. As a pioneer and innovator, Obtain 25 National Patents, Audited by SGS / TUV / CE / ISO9001.
Customer Photos

Thanks to advanced technologies and production equipment, strict meeting industry standards, our quality is well-developedcontinuously. So far, our products have been sold not only all around China but also globally, such as Europe, America, Australia, Southeast Asia, Middle East, etc.
For our clients' feedback videos, please send us inquiry and request!
Packaging & Shipping

We are experienced in the whole packing and shipping process, and we will be responsible for any damage made during shipping and send clients replacements for free. * Sufficient inner protection with different materials, including bubble bag, foam board and others. * Qualified wooden package or carton for different products or as customer require.
