Other Electric Chemical Mixing Tank 500L Agitator Stainless Steel Mixer Liquid Tank

1 Set
MOQ
$6,500.00(1 - 1 Sets) $6,300.00(2 - 2 Sets) $6,000.00(>=3 Sets)
Preis
Other Electric Chemical Mixing Tank 500L Agitator Stainless Steel Mixer Liquid Tank
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Capacity: 50L-30000L, 50-20000L
Automatic Grade: Semi-automatic
Type: Reaction Kettle
Condition: New
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: Gearbox, Motor, Pump
Voltage: 220V,380V
Power: 3-55kw
Dimension(L*W*H): as per request
Weight: 1000kg
Warranty: 1 Year
Key Selling Points: Long Service Life
Applicable Industries: Other
Showroom Location: None
Product name: vacuum reactor
Material: Stainless Steel 304 / SUS316L
Usage: Mixing Proucts
Heating method:: Steam Heating Method
speed:: frequency conventer control
Volume: 100L-30000L
Control system: Automatic Control
Sealing Type: Mechanial Seal
Heating Type: Electric Heatinng
After-sales Service Provided: Free spare parts, Video technical support, Online support
After Warranty Service: Video technical support, Online support, Spare parts
Local Service Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Japan, Malaysia, Australia, Morocco, South Korea, Chile, UAE, Sri Lanka, Kaz
Zertifizierung: ASME CE ISO
Grundinformation
Zertifizierung: ASME CE ISO
Zahlung und Versand AGB
Packaging Details: Wooden cases or shipping
Supply Ability: 20 Acre/Acres per Month
Produkt-Beschreibung
Product Description

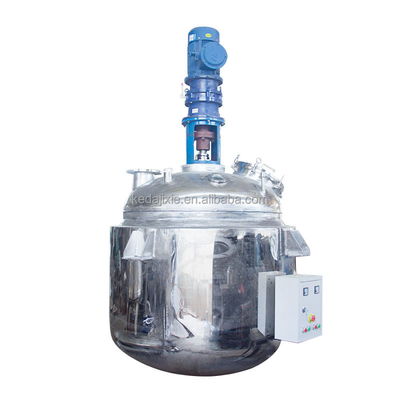

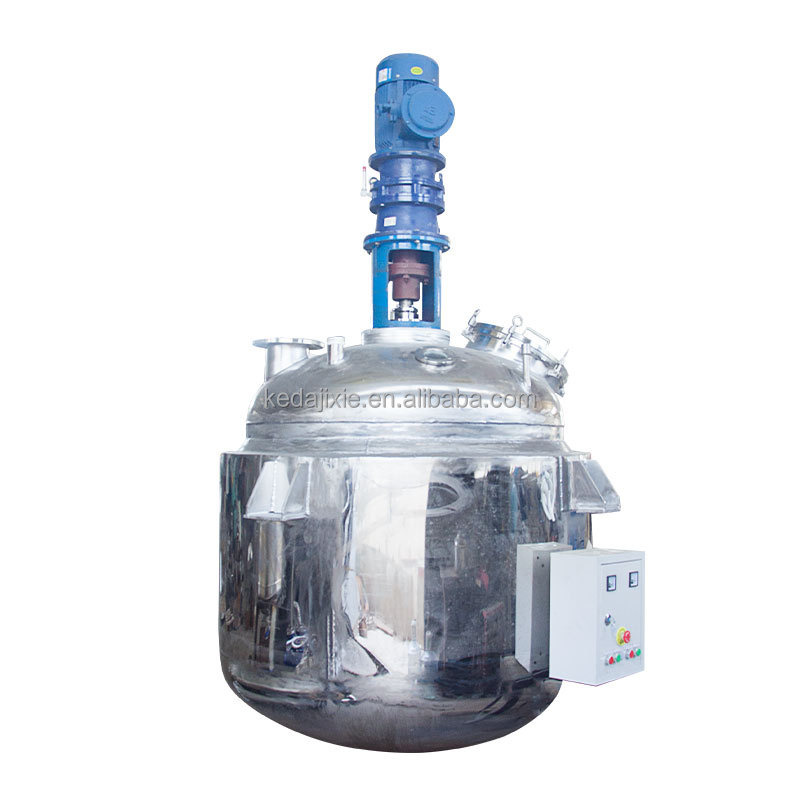

500L Mixing Tank Agitator Electric Chemical Stainless Steel Liquid Mixer Tank

Product Application

Stainless steel reactor is a new type of reaction equipment developed on the basis of absorbing domestic and foreign advanced technology. It has the characteristics of rapid heating, hightemperature resistance, corrosion resistance, hygienic, no environmental pollution, no need for automatic heating of boiler, easy to use and so on. Used in petroleum, chemical, rubber, pesticide, dyes, medicine, food, used to complete the curing, nitrification, hydrogenation, alkylation, polymerization, condensation and other process

Our factory can customize the workbench for your machine.


specification

Main Features


1.Material: a) kettle and cover: SS 304 , SS 316, carton steel , enamel or glass lined ; b) jacket: SS304 or carton steel
2.Heating way: Electric heating, oil heating, oil, water, steam heating. optional.
3. Structure type: Outer coil heating reactor, Inner coil heating reactor, Jacket heating reactor.
4. Jacketed type reaction kettle, coil pipe reaction still, electric heating reaction vessel, multi-function reactor,
5. Mechanical seal (vacuum) or packing seal.
6. Supply complete production line, as well as producing technology. Other related machines as kneader, disperser, blending machine etc. are available. Quality Assurance 50~50000L Chemical reactor.
7. We could do equipment according to your detail requirements.

Detailed Images



Different mixing methods, different mixing speeds.

Usually in the form of a box stirrer, 63/85 RPM/min. Speed converter can be added to achieve speed control.




Distribution box (control cabinet)

Optional PLC control


The machine can be selected without explosion protection, the motor explosion-proof and the whole machine explosion-proof three options.

The motor can be selected from China Huiergy, Jiamusi explosion-proof motor, Siemens explosion-proof motor and other brands.


The equipment consists of a vertical condenser, a horizontal condenser, a reaction kettle, a water storage device and a fractionation column. It is a special equipment for producing unsaturated polyester resin. Unsaturated polyester resin equipment has reasonable design and advanced technology. It is the most ideal unsaturated resin production line in the domestic market. Users can order from our company according to their annual production capacity and technical requirements.



Contact Us

Finally, the above picture is for reference only.

As a machine manufacturer, we can offer you low prices and quality products.

Our machines can be customized, if you are interested in the product and would like to know more details, please contact me.
