Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat

Eigenschaften

Technische Daten

Condition: New

Applicable Industries: Food & Beverage Factory, Food & Beverage Shops

Max Working Pressure(MPa): 0.3 MPa

Capacity: 50l-20t for 1000l pharmaceutical tank

Dimension(L*W*H): Customerized for 1000l pharmaceutical tank

Weight: 50L-20T for 1000l pharmaceutical tank

Warranty: 1 Year, 1 year

Key Selling Points: Easy to Operate

Showroom Location: None

After Warranty Service: Video technical support, Online support

Local ServiceÂ Location: None

After-sales Service Provided: Free spare parts, Video technical support, Online support

Zertifizierung: CE

HS code: 8479820090

Advantages: long life

Function: Widely Used

Usage: mixing Tank

Product name: cosmetic, food, beverage, chemical, medicine

Application: Industry

Test pressure: 0-1Mpa

Standard: TUV, ISO,CE

Grundinformation

Zertifizierung: CE

Zahlung und Versand AGB

Packaging Details: plywood or wooden box for 1000l pharmaceutical tank(HS code: 8479820090)

Supply Ability: 100 Set/Sets per Month 1000l pharmaceutical tank

Produkt-Beschreibung

Product Description

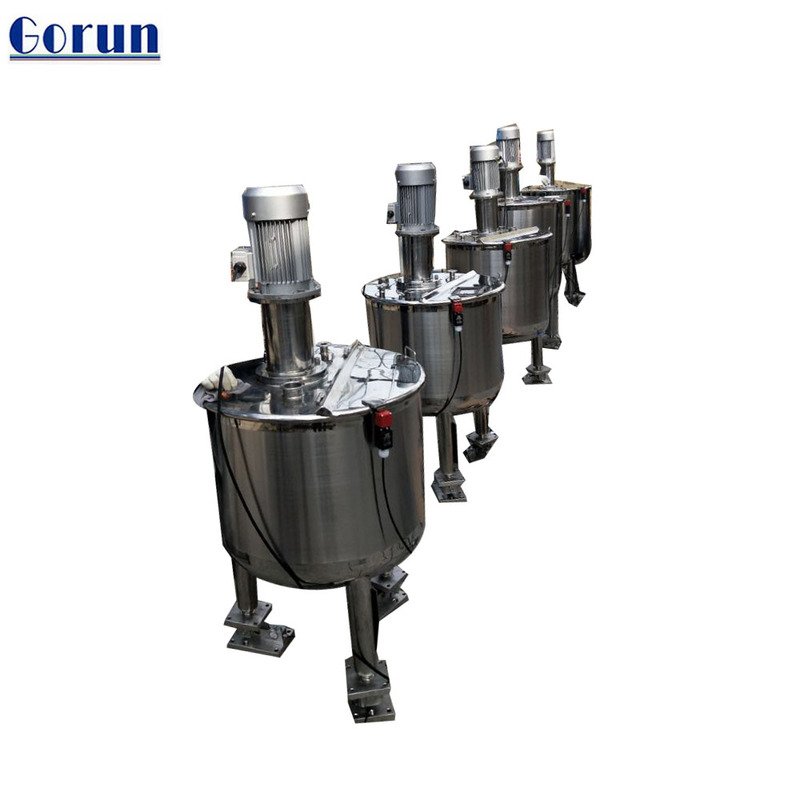

1000L Mixing Liquid Pharmaceutical Tank:

Details: Inner surface adopt mirror polish; tank bottom use arc design.

Structure: Adopt oval tank top and standard tank jacket, there is a magnetic agitator at bottom.

Advantages: No dead angle; inlet design makes a continuous filling possible, outlet design is good for discharge process; agitator with small distance from tank bottom, low requirement of liquid level; No precipitation problem and solve the problem of top mixer requires a minimal liquid level.

Used in Pharmaceutical industry

Tank Top-manhole cover

Tank Bottom-agitator motor

_{Single layer vacuum mixing tank:}

Three-layer vacuum mixing tank:

GORUN Stainless Steel Mixing Tank (CE):

Profile/Type	Single layer	double layers	Three layers
Structure	one layer	inlayer+insulation layer	inlayer+jacket+insulation
Cooling way	no	coiled pipe or not need	water/ coiled pipe/refrigeration unit or not need
Heating way	no	electric/coiled pipe or not need	electric/steam/coiled pipe or not need
Material	SS304/SS316
Volume	50L-20T
Pressure	Vacuum-1Mpa
Mixing type	Paddle type; scrape type; anchor type; frame type; mulser; emulsification head
Accessories	1. manhole; 2. wheels; 3. cleaning ball; 4. liquid level gauge; 5. pressure gauge; 6. temperature gauge; 7.sight glass; 8. platform and ladder; 9. valves; 10. pipes;
Control content(optional)	1. The start and stop of pump; 2. Temperature display and control; 3. Pressure display and control.( See below, get more details)

Mixing type:

Double ribbon type	Mixing speed: 0-20rpm. This series agitator used for high ceoncentration medium, wuch as: honey, jam etc.
Paddle type agitator	Mixing speed: 0-120rpm. This series agitator used for mixing low viscosity and concentration medium, Such as: milk, beer, juice etc.
Scrape type agitator	Mixing speed: 0-80rpm. This series agitator used for mixing high viscosity medium. Such as: chocolate, honey, mayonnaise etc.
Frame and anchor type agitator	Mixing speed: 0-120rpm. This series agitator used for high viscosity medium. Such as sediment, oral liquid, etc.
Top mulser	Mixing speed: 0-2800rpm. This series agitator used for high viscosity medium homogenizing emulsification. Such as: suspension, oil, fat etc
Bottom emusifying head	Mixing speed: 0-2800rpm. This series agitator used for high viscosity medium bottom homogenizing. Such as: suspension, oil, fat etc.
Bottom magnetic agitator with propeller impeller	Mixing speed: 0-1400rpm. This type agitator used for mixing thin viscosity, like eyedrop, injection, CIP liquid etc

Applied Field:

1. Pharmaceutical industry:

Emulsion, ointment, oral syrup, oral liquid, etc.

2. Cosmetics industry:

Cream, shaving cream, sunscreen, lotions, essence, moisturizing cream, hand cream, etc.
3. Daily chemical industry:

Laundry detergent production, shampoo, toothpaste, liquid soap, detergent, etc.

4. Food industry:

Honey, fruit jam, cheese, ketchup, mayonnaise, baby food, chocolate cream, syrup, etc.

Our company

Show room

Shanghai Gorun Machinery Technology Co., Ltd derived from Shanghai Geshi Fluid Equipment Technology Co., Ltd, which is found in1993.

Company has nearly 3000 square meters fully closed filter production workshop which meet GMP requirements

Our Workshop:

Tank production workshop

Filter cartridge (aseptic production workshop)

Our exhibition:

Packing&delivery

Packing
50L-1500L volume: plywood or wooden box package.
More than 1500L volume: support package.

Delivery

1. By sea: Container/LCL
2. By air: Flight/Express(UPS、FEDEX 、DHL、TNT, EMS, ARAMEX etc)
3. By road

Our Service

Our mission: Production and provide best quality products to win trust from our customer.

Establish win-win relationship with all customers.

To be continued...

See below

Do best products, provide best service.

Project Cases

Case 1: Pharmaceutical Factory:

GORUN devote to design and provide single equipment, production line for our clients.

All project design based on spatial layout, production industry and clients' specific requirements for machine production automation.

Case 2: Seasoning Production Factory:

1. We have professional engineers and high-quality sales team who can provide high-efficiency service to you.

2. We will send test, running video and operation manual to you teach you how to use, fix, maintain this machine.
3. Any operation issues when you receive equipment, please send message or take some photos to us. We will deal with it within 24 hours.

FAQ

Q: Are you a manufacturer or a trader?
We're a manufacturer with more than 20 years professional production experience.
Q: Can your factory produce products according to our drawings?
Yes, we can. Most products can be customized, including the Logo on products.
Q: What kind of your packaging ?
Neutral plywood or wooden box packaging or according to customer’s requirements.
Q: Can you provide us the design drawing?
Yeah, of course, we will provide you the drawing after you payment or prepaid.
Q: How long is your delivery time?
Normally 10-45days after payment, and we promise we will delivery as soon as we can.

Shanghai Gorun

Machinery Tech Co., Ltd

Mail: gy AT shgorun.com
Cell: +86-15921075792
Tel: +86-021-5922 8528
Fax: +86-021-5922 8085
Add: No.8 Tianyi Road, Qingpu, Shanghai, China
