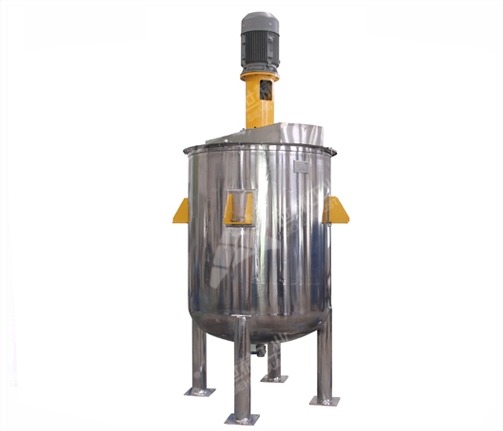

Stainless Steel Liquid Mixing Tank With Agitator Liquid Mixing Tank

1 Set
MOQ
$12,500.00(>=1 Sets)
Preis
Stainless Steel Liquid Mixing Tank With Agitator Liquid Mixing Tank
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Mixer Type: Screw
Barrel Volume (L): 2000
Max. Loading Volume (L): 20000 L
Range of Spindle Speed(r.p.m): 1 - 45
Max. Loading Capacity: 20000
Weight (KG): 580 KG
Condition: New
Product Type: liquid
Application: Liquid, Chemicals Processing
Additional Capabilities: Milling
Voltage: 380V, 210V,415V
Dimension(L*W*H): Depending
Power (kW): 18.5 kW
Warranty: 1 Year
Key Selling Points: High Productivity
Applicable Industries: Manufacturing Plant
Showroom Location: None
Marketing Type: Ordinary Product
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor, Gear, Pressure vessel, Gearbox, Pump, PLC, Bearing, Engine
After-sales Service Provided: Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
After Warranty Service: Video technical support, Online support, Field maintenance and repair service
Local Service Location: None
Zertifizierung: CE ISO
Motor brand: ABB.Siemens
Invert: Schneider
Bearing: NSK
Material: Stainless Steel 304 / SUS316L
Heating method: Electricity Heating
Mixing speed: Adjustable
Product name: Stainless steel mixing tank with agitator liquid mixing tank
Grundinformation
Zertifizierung: CE ISO
Zahlung und Versand AGB
Packaging Details: 20GP, 20OT, 40GP, 40OT, etc. By sea/railway;
Supply Ability: 5 Set/Sets per Quarter
Produkt-Beschreibung
Overview

1. Stainless steel movable tank, stainless steel remobile tank

------for storage or used together with disperser/ mixer/ basket mill.
------adopts Baosteel / Pohang high-quality steel; adopt CNC cutting and automatic treats; argon arc welding; automatic polishing; ensure high quality.

Single layer
with handle and forklift slots

Double layer tank with forklift groove

Thickened tank work with high viscosity mixer

Structure optional

2. Stainless steel mixing kettle:

------With agitator top or bottom installed
Mixing tank/vessel/kettle, which is used for liquid-liquid or powder-liquid blending and mixing, is a type of large-scale
production equipment and has the functions of dispersing, emulsifying, heating and cooling, to fulfill different production
process requirement; It can be stably running for long time, has the advantages of small noise, simple operation and strong
adaptability, is the ideal multi-functional equipment for mixing and dispersing.
Single shaft mixing tank with flat cover
Dual sfate mixer for higher viscosity slurry mixing
Mixing tank with water recycle system

Three shaft mixing tank located on platform

Dispersing tank with heating coil

Manufacturing Technique
Model
Working volume (L)
Mixing power (KW)
Mixing speed (rpm)
Dispersing power (kw)
Dispersing speed  ( rpm)
Screw power (kw)
Speed (rpm)
Emulsifying power (kw)
Speed (rpm)
SJBF-500
500
3-5.5
0-75
0-1450
11-18.5
4-7.5
0-200
7.5-11
0-1500
SJBF-1000
1000
5.5-11
0-58
0-1450
18.5-30
7.5-15
0-180
15-22
0-1500
SJBF-1500
1500
7.5-15
0-58
0-1450
22-37
7.5-15
0-180
22-30
0-1500
SJBF-2000
2000
15-18.5
0-45
0-1450
30-45
11-18.5
0-160
30-37
0-1500
SJBF-3000
3000
18.5-22
0-35
0-1450
45-55
15-22
0-140
37-45
0-1500
SJBF-5000
5000
18.5-22
0-25
0-950
55-90
22-30
0-120
45-55
0-1500
SJBF-6000
6000
22-30
0-24
0-950
75-110
30-37
0-120
SJBF-8000
8000
22-30
0-22
0-950
90-132
37-45
0-100
SJBF-10000
10000
30-37
0-17
0-950
110-160
37-45
0-80
About Us
Contacting us:
SIEHE Industry --- China Machine Manufacturer

Thea Xi / International Sales Rep.

Tel: +86 021 52913185*126 / Cel: +86(0) 18930995872 / Fax: +86-021-52912822
E-mail: sales04@siehechina.com / Web: www.sieheindustry.com

Office: Room 305-307, Building1, No. 168 Taihong Rd., Hongqiao Business District, Shanghai
Factory: No.548Zhenying Rd.. Qingpu Industrial Park, Shanghai, China.
FAQ
Q 1: Payment terms?
A 1: L/C, T/T, D/P, cash, Alibaba trade assurance;
Q 2: Trade terms?
A 2: In according with Incoterms 2010, normally with EXW, FOB Shanghai, CFR, CIP, CIF and DDU;
Q 3: Validity of quotation?
A 3: Within 30 days;
Q 4: Modes of shipment?
A 4: By sea, by railway, by air and by express;
Q 5: Warranty?
A 5: One year and lifelong service provided at cost;
Q 6: Installation & Commissioning & Training
A 6: For single set of machine, usu. tel or mail guidance for installation;
For production line, paid overseas engineering service provided to customers' factory for installation and debugging, as well as training the worker to use the production line.
Our Services

On-sales

1. Project-Manager system: one customer, one project manager.
2. Schematic drawing for core equipments;
3. Production process follow-up;
4. Factory visit for equipment test before delivery;
5. Technical documents, e.g. English version operational manual, drawing of circuit, etc.

After sales

1. One year warranty;
2. 7×24h service line;
3. Overseas engineering service team for installation and training at your site;
4. Abundant warehouse of spare parts purchasing;
5. Equipment update service;
6. Detailed records of communications;
